For Heat-sensitive, Heat-sensitive or High filler material, KTE/SE series Two Stage Extruders are designed for such processes. Twin screw extruder provides mixing and dispersion without over-shear. Low speed single screw extruder provides sufficient cooling and pressure.
SE series Two stage single screw extruder is suitable for high water content (about 10%of water), dirty and light waste plastic recycling material, Granule form uniformly, Extruder capacity stable and high output. The extruder system can be arranged in one -shaped or L type. The main and sub extruder are equipped with large screen changer, which can effectively filter the impurities. And final granules ae full and gloss.
KTE/SE Two Stage extruder line parameters:
SE/SE Two Stage Single screw extruder line parameters:
KTE/SE Two Stage extruder:
1) PVC compounding for cable;
2) Wood and plastic compounding;
3) EVA compounding with foaming agent or cross-link additives
4) XLPE for cable or PEX pipes
5) High concentration carbon black Masterbatch
SE/SE Two Stage Single screw extruder:
1) Film recycling
2) Waste cloth/silk recycling
3) Soft, hard PVC recycling
4) PP/PE and other crushed flake materials recycling

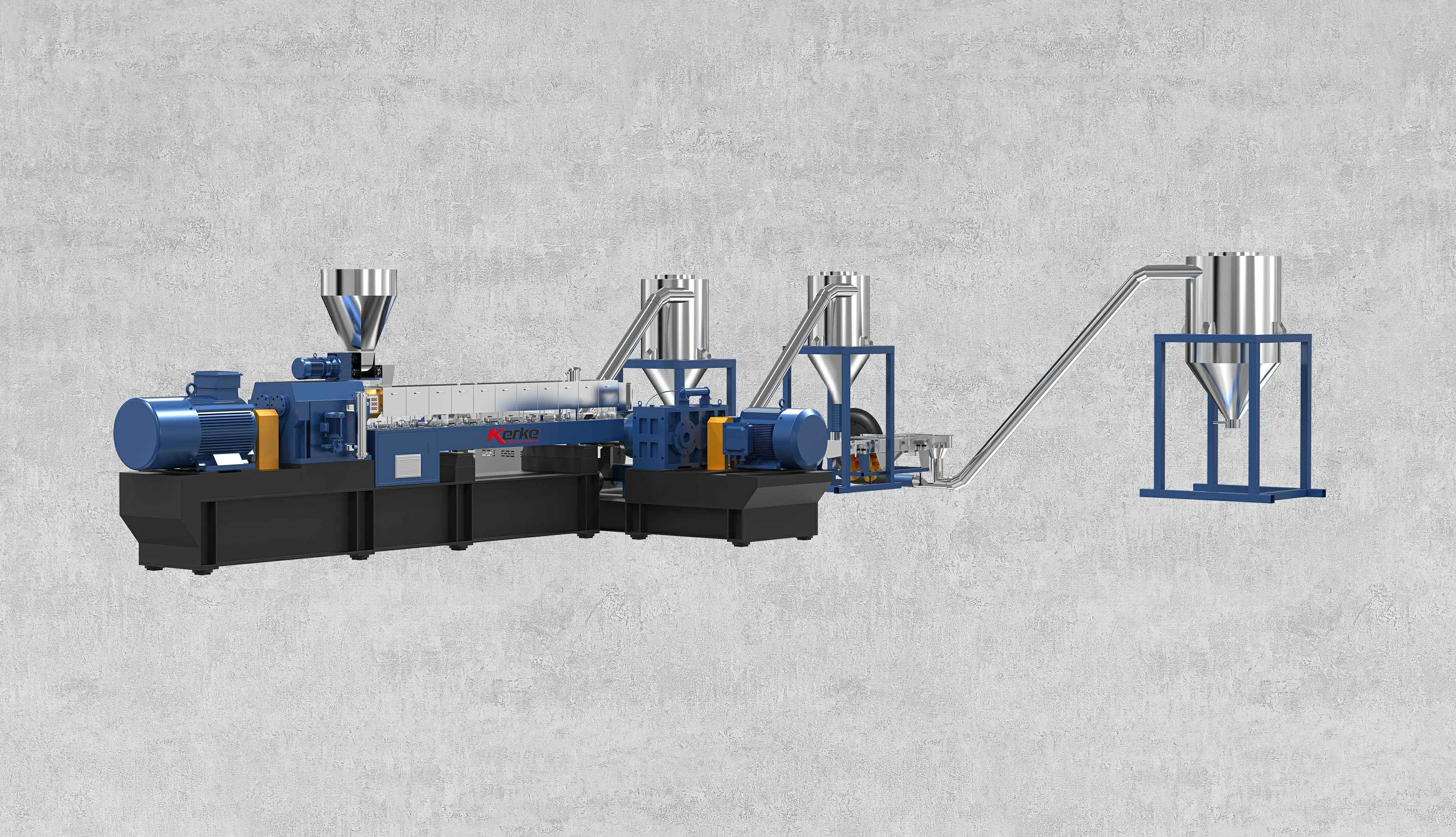

KTE/SE Series：
Water-cooling strands:
1.Main feeder | 2.Side feeder | 3.Twin screw extruder |
4.Single screw extruder | 5.Water tank | 6.Air Knife |
7.Pelletizer | 8.Vibrating sieve | 9.Product silo |

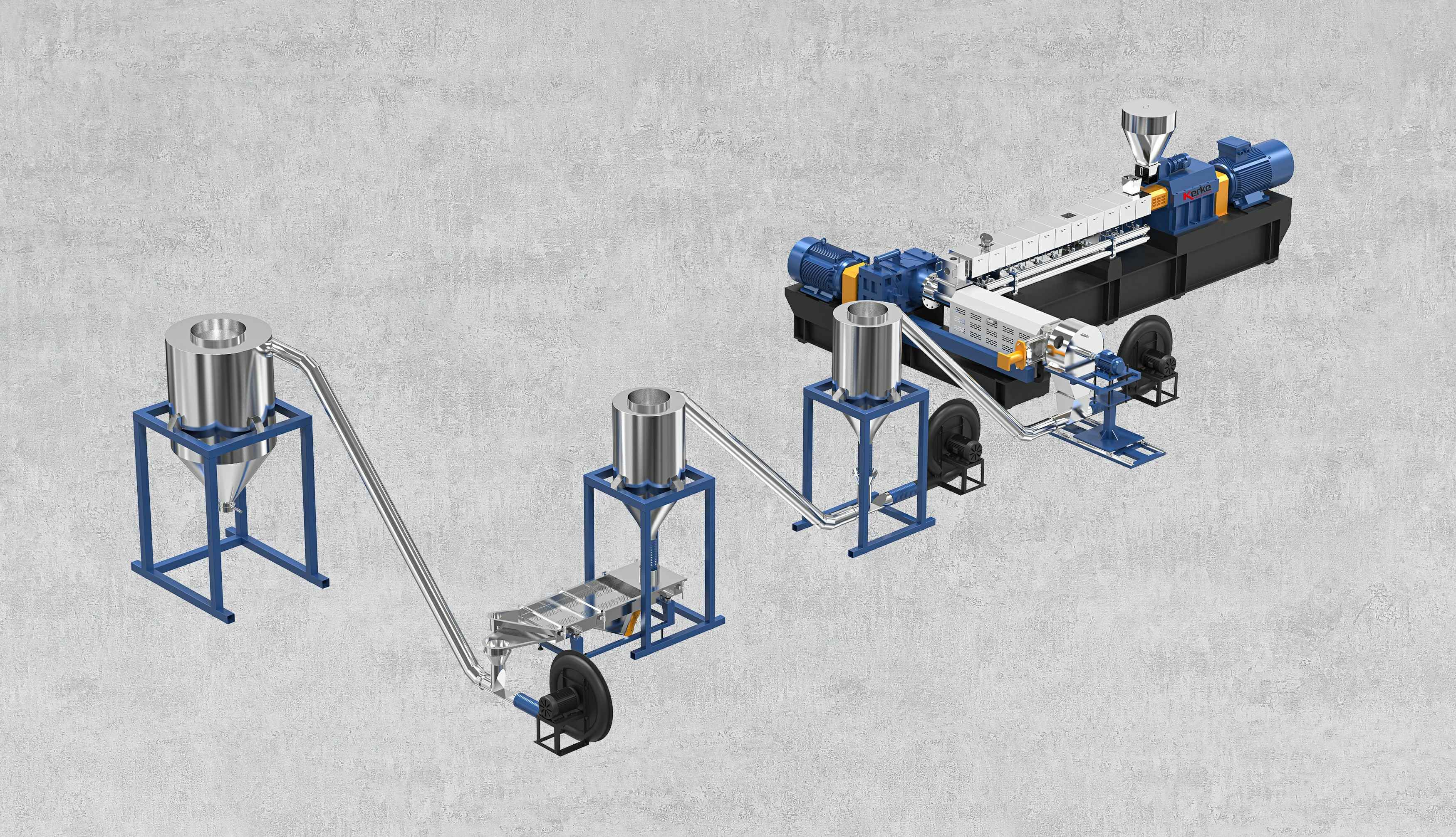

Water-ring hot cut：
1.High speed mixer | 2.Spiral loader | 3.Main feeder |
4.Twin screw extruder | 5.Single screw extruder | 6.Water-ring hot cutter |
7.Dewaterer machine | 8.Vibrating sieve | 9.Product silo |
Air-cooling strands:
1.Main feeder | 2.Twin screw extruder | 3.Single screw extruder |
4.Belt conveyor | 5.Pelletizer | 6.Product silo |

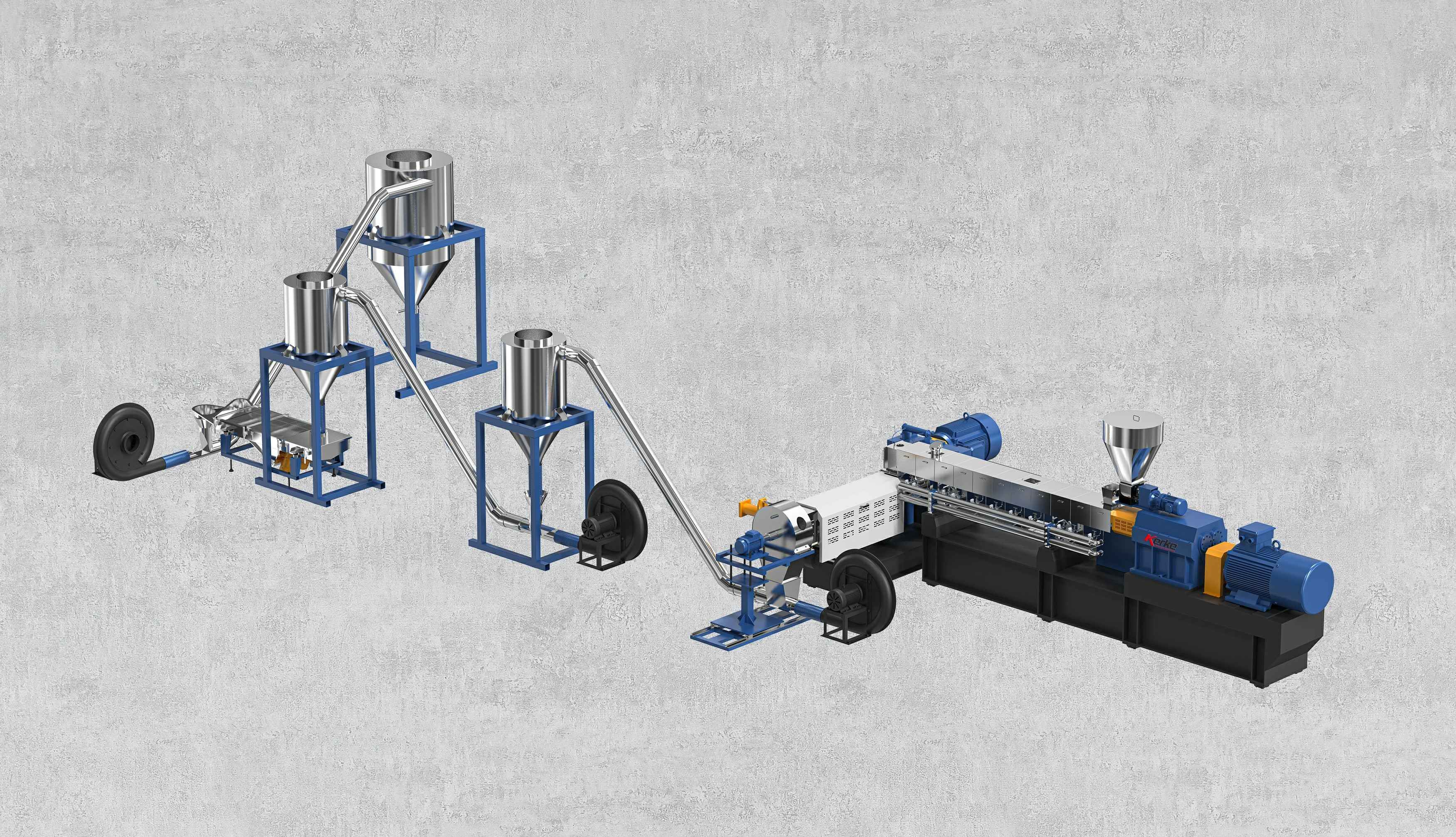

Air-cooling hot cut:
1.High speed mixer | 2.Spiral loader | 3.Main feeder | 4.Force feeder | 5.Twin screw extruder | 6.Single screw extruder |
7.Air-cooling hot cutter | 8.Cyclone | 9.Vibrating sieve | 10.Cyclone | 11.Product silo | |

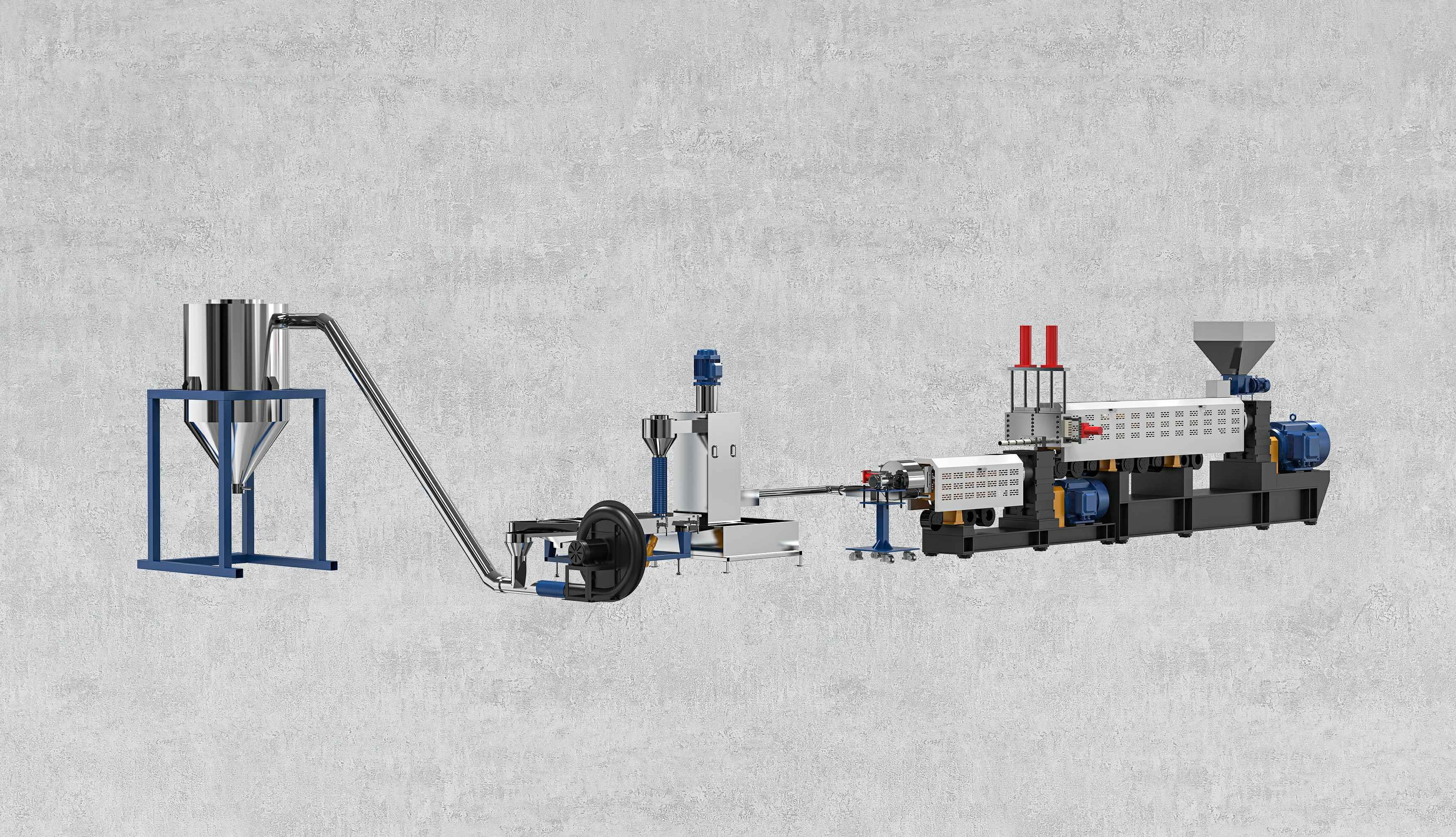

Underwater Pelletizer:
1.Main feeder | 2.Force feeder | 3.Twin screw extruder |
4.Extrude side | 5.Single screw extruder | 6.Underwater pelletizer |
7.Dewaterer machine | 8.Vibraing sieve | 9.Product silo |
SE/SE Seires：
Water-cooling strands:
1.High speed mixer | 2.Single screw extruder | 3.Single screw extruder | 4.Water tank |
5.Air knife | 6.Pelletizer | 7.Vibrating sieve | 8.Product silo |
Water-ring hot cut:
1.Main feeder | 2.Single screw extruder | 3.Single screw extruder | 4.Water-ring hot cutter |
5.Dewaterer machine | 6.Vibrating sieve | 7.Product silo | |
*
*
